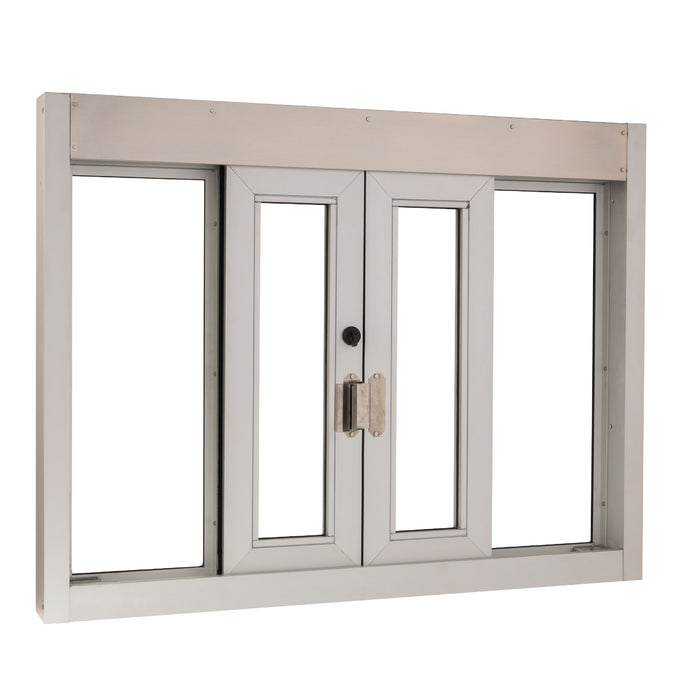

Quikserv Bi-parting Self Closing Drive Thru Window | | Multiple Sizes

Quikserv Bi-parting Self Closing Drive Thru Window | | Multiple Sizes

by Quikserv
SKU CSE-QS-BPSC-4836-C | 9115-CX
$0.00 - $2,525.00
$0.00
$1,950.00
$1,950.00 - $2,525.00
$1,950.00

Usually Ships In:

Size: 48 x 36
Glass: 1/4" Tempered
Color: Clear Anodized Aluminum
CUSTOM QUOTE
Questions?
Questions?
Give us a call: (866) 286-4400
Custom Products
Custom Products
Designed to your exact specs
Expert Support
Expert Support
Our product specialists are ready to help
Warranty
Warranty
Covered by our 12-month warranty
Overview

This manual transaction window has bi-parting, self-closing sliders that provide a service opening for the largest of products. Doors open manually from the middle eliminating the need to order right or left handed models. The transaction window locks automatically when closed and passes all health code requirements. BPSC-4836

  • Shipped fully-assembled and ready to install
  • Warranty backed with nationwide service centers
  • 1/4” clear tempered safety glass
  • Weather resistant & sealed to protect from the elements
  • Dark bronze or clear anodized aluminum
  • Corrosion resistant material: anodized aluminum and #304-#3 finish stainless steel
  • Security locking systems
  • Maximum security hook-bolt locks
  • Automatically locks every time the door closes to prevent outside penetration

Products Quikserv Bi-parting Self Closing Drive Thru Window | 48" (W) x 36" (H) | CSE-QS-BPSC-4836Products Quikserv Bi-parting Self Closing Drive Thru Window | 48" (W) x 36" (H) | CSE-QS-BPSC-4836

Tech Specs

Details

BPSC-4836

Window unit size: 48" (W) x 36" (H)
Service opening: 16-1/4”(W) x 28-1/2”(H)
Rough Opening: 48-3/8”(W) x 36-3/8”(H)
Frame Depth: 4-1/2"
Installation screw holes: 1/4"

Shipping Weight
1/4" tempered:

Glazing Specifications

1/4" Tempered Glass

Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84

1/4 Tempered Glass Specification

    Downloads

    Installation
    Three-Sided View (48 x 36)Three-Sided View (48 x 48)
