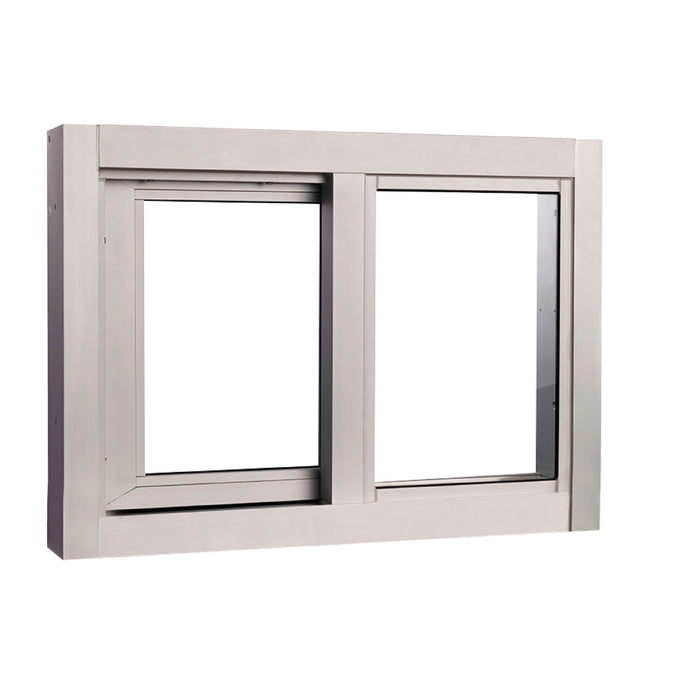

Quikserv Small Scale Side Sliding Transaction Window
Usually Ships In:
Usually Ships In:
| MODEL | SC-3021 | CUSTOM |
|---|---|---|
| Overall Size | 30"(W) x 20-1/2"(H) Download Cut Sheet | Max: " (W) x " (H) Download Cut Sheet |
| Rough Opening | 30-3/8"(W) x 21-7/8"(H) | |
| Service Opening | 11"(W) x 16-3/8"(H) | Min: 14-1/2"(W) Max: 20-1/4"(W) |
| Jamb Depth | 4-1/2"(D) | |
| Weight | No Shelf: lbs With Shelf: lbs | |
| Glazing | 1/4" Tempered - Download Specification | 1/4" Tempered 1" Insulated Level 1 Bullet Resistant Level 3 Bullet Resistant Polycarbonate |
| Frame Material | 1/4" Tempered: Anodized aluminum and #304-#3 finish stainless steel Bullet Resistant: Loaded aluminum frame and #304-#3 finish stainless steel | |
| UL 752 Rating | Level 1 Bullet Resistant Protection - 9mm Level 3 Bullet Resistant Protection - .44mag | |
| Frame Color | Clear Aluminum Dark Bronze | Clear Aluminum Dark Bronze Powder Coated |
| Environment | Interior / Exterior application | |
| Installation | Download Installation Instructions | |
| Assembly | Shipped fully assembled, ready to install | Glazing dropshipped separately for larger sizes |
| Warranty | 12 Month - Standard Warranty | |
| Architect | Download 3-Part Spec | |
