Armortex 6003 Large Transaction Drawer, Standard or Extended Wall

Armortex 6003 Large Transaction Drawer, Standard or Extended Wall

Item #CSE-ATX-TD-6003-L1 Model #6003
4,65000
$4,650.00 - $6,000.00
$4,650.00 - $6,000.00
4,65000
Bestseller
Get it Fast
Built-to-Order
Submittal

Typically ships in 8-10 weeks after approved drawings (if applicable)

Submittal required

Shop drawings will be provided for approval prior to fabrication

Order received. We review the order details and begin preparing your submittal package. After we receive your order, we send submittal drawings for review and approval prior to fabrication. This can take up to 1-2 weeks. Once submittals are approved, your order moves into fabrication. After fabrication is complete, your order ships and is delivered.
Order
Received Submittal
Approval Fabrication Delivery

Ships via LTL Freight

Ships via LTL Oversize Freight!

This product ships via LTL freight due to its size or weight. Someone must be available to receive the shipment, inspect for damages, and sign the delivery receipt. Please provide accurate delivery contact information when placing your order.

This product ships via LTL freight due to its size and weight. Please ensure that your delivery location is equipped with either a forklift or a loading dock to safely offload the shipment. If your site is not equipped for LTL delivery, additional delivery arrangements may be required and could result in extra charges.

For Architects & Contractors

3 Part Spec (PDF) PDF 3 Part Spec (Word) DOCX
View all project resources
Armortex logo

Get exactly what you need!

We'll deliver a custom quote tailored to your specifications.

Request a Custom Quote

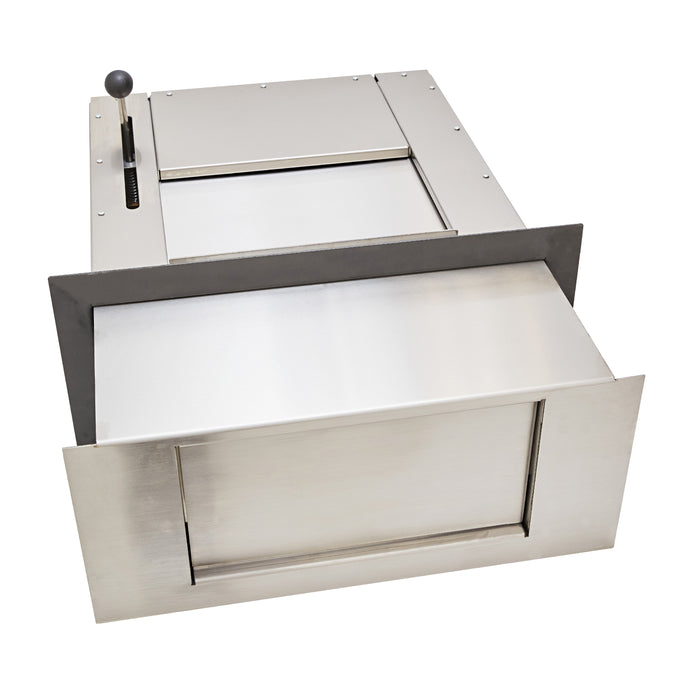

Armortex 6003 transaction drawer

Bullet resistant drawers are designed to be used when deal trays are not large enough or secure enough. The Armortex 6003 is a large stainless steel transaction drawer with a 14" W x 13" D package bin, made in a standard version for walls up to 4-15/16" thick and an extended version for walls up to 12-1/16" thick. Offered in UL Levels 1, 3, 4, 5 and 8.

Tech Specs

Model: 6003 (standard), TE-6003 EX (extended)
Ballistic Level (UL): 1, 3, 4, 5, 8
Application: Interior
Package Bin (clear inside): 14" W x 13" D x 7 1/8" H
Maximum Wall Thickness: 4 15/16" (standard), 12 1/16" (extended)
Drawer Extension: 9 1/2" (standard), 10 1/2" (extended) past the wall face
Case, Standard: 24" W x 28" L x 10 1/4" H
Case, Extended: 24" W x 35 15/16" L x 10" H
Case Material: 16 ga. prime painted steel
Drawer, Front, Top, Drawer Cover & Handle: Stainless steel, #3 brushed
Armor: UL listed Armortex bullet resistant composite (Levels 1-3) or Hi-Hard ballistic steel (Levels 4-8)
Included: 3-sided adjustable mounting frame, sliding drawer tracks
Installation: Set with flanges on top of counter. Finished wall opening is 3/4" larger than the drawer unit at the bottom and both sides.

General

SKU
CSE-ATX-TD-6003-L1
MPN
6003
Model
6003
Finish
Prime painted case, #3 brushed stainless
Materials
16 gauge prime-painted steel case; stainless steel drawer, drawer front, top and front, drawer cover and actuating handle; Armortex composite (L1-3) or Hi-Hard ballistic steel (L4-8)
Operation
Manual
Included
3-sided adjustable mounting frame; sliding drawer tracks

Dimensions (CSE-ATX-TD-6003-L1)

Width
24 in
Height
10.25 in
Depth
28 in
Quote clipboard

Need a Custom Product?

Get a personalized quote just for you.

Request a Quote
Questions?
Questions?
Give us a call: (866) 286-4400
Custom Products
Custom Products
Designed to your exact specs
Expert Support
Expert Support
Our product specialists are ready to help
Warranty
Warranty
Covered by our 12-month warranty
Overview

Armortex 6003 transaction drawer

Bullet resistant drawers are designed to be used when deal trays are not large enough or secure enough. The Armortex 6003 is a large stainless steel transaction drawer with a 14" W x 13" D package bin, made in a standard version for walls up to 4-15/16" thick and an extended version for walls up to 12-1/16" thick. Offered in UL Levels 1, 3, 4, 5 and 8.

Tech Specs

Model: 6003 (standard), TE-6003 EX (extended)
Ballistic Level (UL): 1, 3, 4, 5, 8
Application: Interior
Package Bin (clear inside): 14" W x 13" D x 7 1/8" H
Maximum Wall Thickness: 4 15/16" (standard), 12 1/16" (extended)
Drawer Extension: 9 1/2" (standard), 10 1/2" (extended) past the wall face
Case, Standard: 24" W x 28" L x 10 1/4" H
Case, Extended: 24" W x 35 15/16" L x 10" H
Case Material: 16 ga. prime painted steel
Drawer, Front, Top, Drawer Cover & Handle: Stainless steel, #3 brushed
Armor: UL listed Armortex bullet resistant composite (Levels 1-3) or Hi-Hard ballistic steel (Levels 4-8)
Included: 3-sided adjustable mounting frame, sliding drawer tracks
Installation: Set with flanges on top of counter. Finished wall opening is 3/4" larger than the drawer unit at the bottom and both sides.
