Extra-Small Ballot Drop Box (450) On Concrete

Extra-Small Ballot Drop Box (450) On Concrete

by American Security Products
Item #CSE-AS-BD-450-OC-KB
2,19000
$2,190.00 - $2,190.00
$2,190.00 - $2,190.00
2,19000
Bestseller
Get it Fast
Built-to-Order
Submittal

Usually ships in 4-5 weeks + transit

Submittal required

Shop drawings will be provided for approval prior to fabrication

Order received. We review the order details and begin preparing your submittal package. After we receive your order, we send submittal drawings for review and approval prior to fabrication. This can take up to 1-2 weeks. Once submittals are approved, your order moves into fabrication. After fabrication is complete, your order ships and is delivered.
Order
Received Submittal
Approval Fabrication Delivery

Ships via LTL Freight

Ships via LTL Oversize Freight!

This product ships via LTL freight due to its size or weight. Someone must be available to receive the shipment, inspect for damages, and sign the delivery receipt. Please provide accurate delivery contact information when placing your order.

This product ships via LTL freight due to its size and weight. Please ensure that your delivery location is equipped with either a forklift or a loading dock to safely offload the shipment. If your site is not equipped for LTL delivery, additional delivery arrangements may be required and could result in extra charges.

American Security Products logo

Get exactly what you need!

We'll deliver a custom quote tailored to your specifications.

Request a Custom Quote

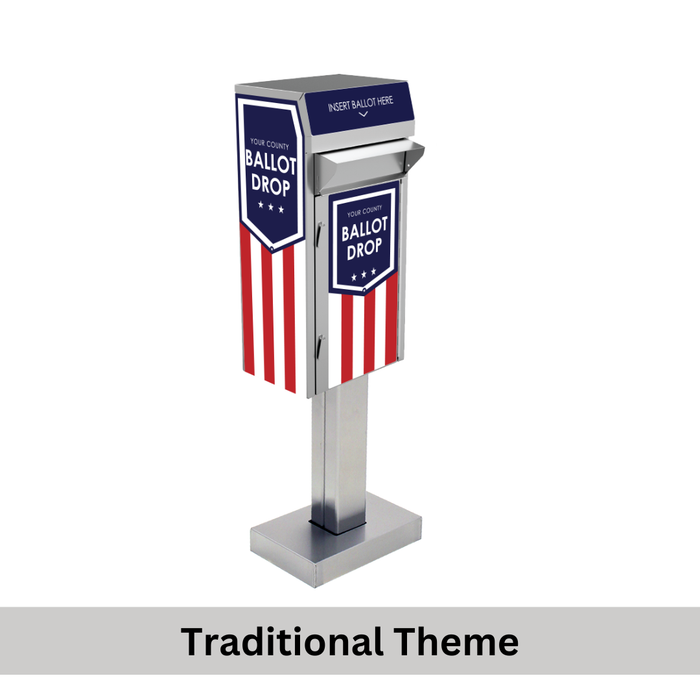

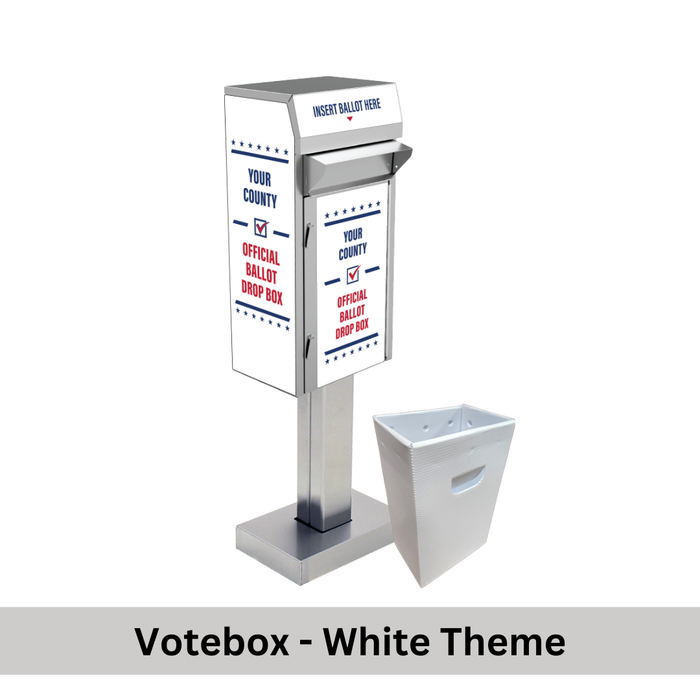

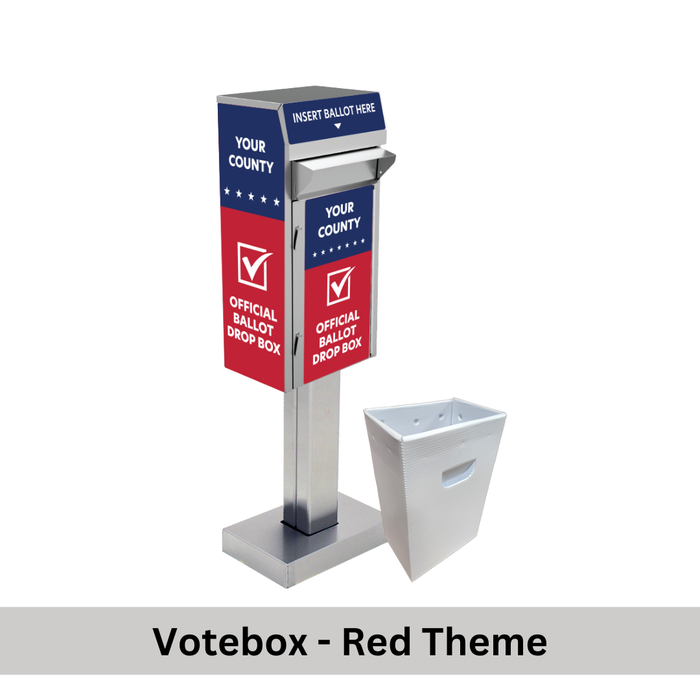

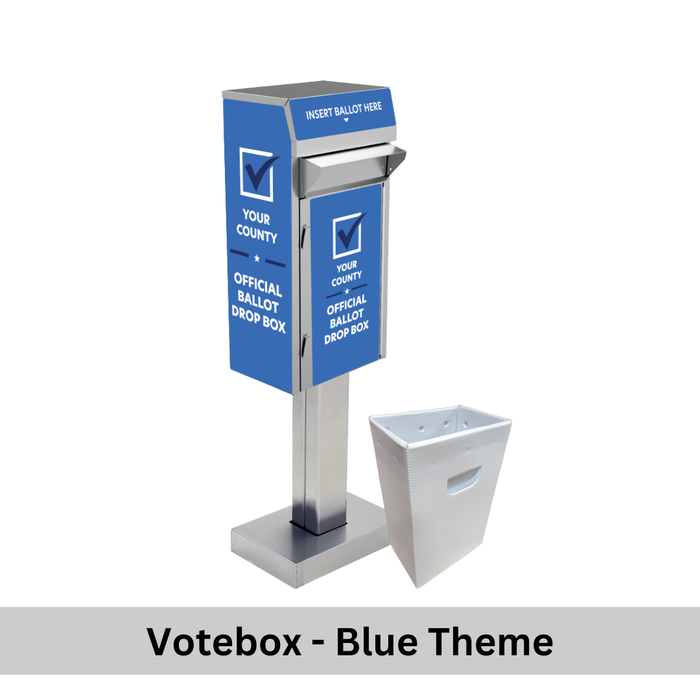

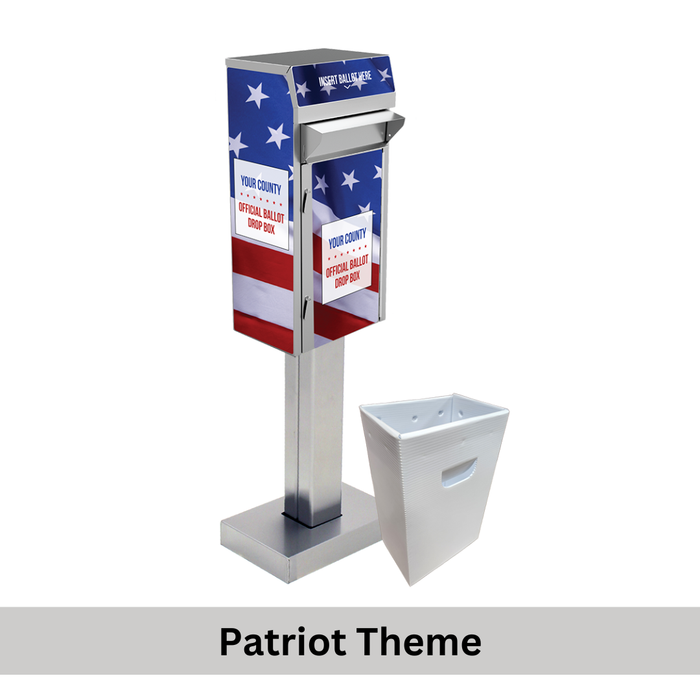

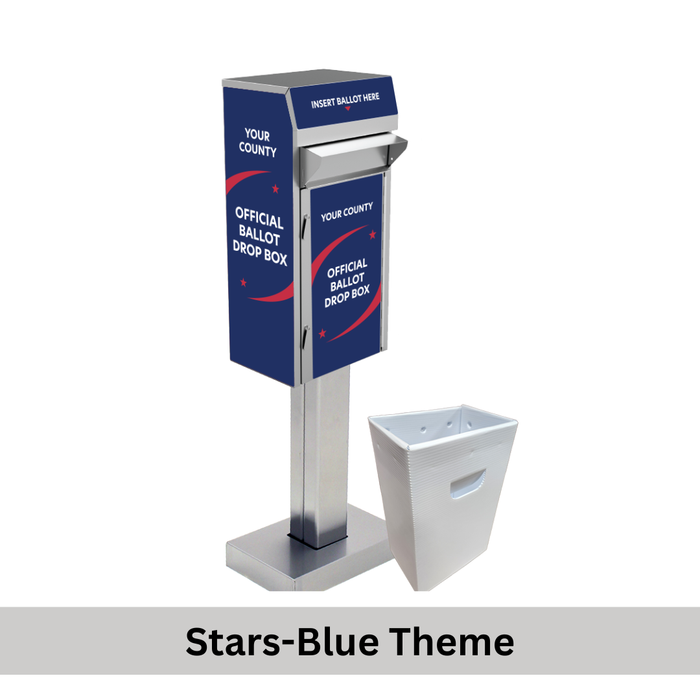

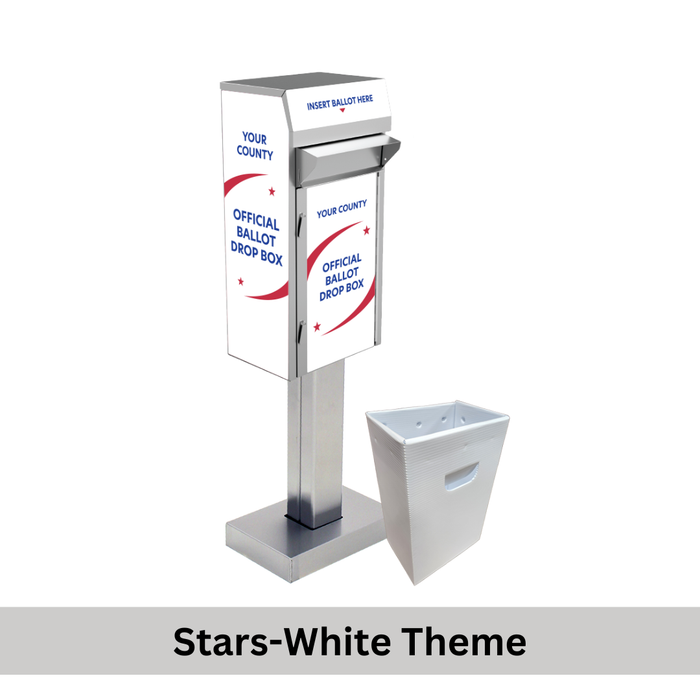

A compact, brushed stainless steel ballot drop box on a 22" stainless steel pedestal that anchors to a concrete pad. The 450 is a pedestal-mounted ballot box. It differs from the larger 700/750-style cabinets, which sit directly on concrete. Manufactured by American Security Cabinets (item NS 7417).

Specifications

  • Capacity: approximately 500 ballots
  • Ballot slot: 12" x 0.5"
  • Cabinet: 29" x 14.5" x 14.5"
  • Pedestal: 22" stainless steel, 4" x 4" post with base plate and anchor cover
  • Overall height: approx. 53"
  • Ships fully assembled, approx. 47 lb

Includes

  • (4) stainless steel wedge anchors for fastening to concrete
  • Plastic collection tote
  • 2 sets of registered, double-bitted keys (cannot be copied)
  • Vinyl wrap in your choice of theme: Patriot, Stars-Blue, Stars-White, Traditional, Vote Box - Blue, Vote Box - Red or Vote Box - White. Or choose No Vinyl for a blank stainless cabinet.

Security

  • Anti-pry door jambs and double-locking access door
  • Brass cam locks and a "Kiosk Closed" lock bar
  • Restricted opening with anti-phishing / anti-tampering design

Built for outdoor use

  • Sloped top and lock covers shed rain, snow and ice
  • Weather-stripped doors and sealed seams limit oxygen inside to help suppress fire
  • ADA Title II and Title III compliant: one-hand delivery at ADA height
  • Manufacturer's lifetime warranty against rust-through corrosion

Optional accessories (ask for pricing): additional key sets, additional collection tote, kiosk cover, 40" on-concrete protector posts.


Cut Sheets
Model Cut Sheet
450 On Concrete (NS 7417) PDF cut sheet

General

SKU
CSE-AS-BD-450-OC-KB
MPN
NS 7417
Finish
Brushed stainless steel
Compliance
ADA Title II and Title III compliant
Included
Pedestal, 4 SS wedge anchors, anchor cover, collection tote, 2 key sets
Capacity
Approx. 500 ballots
