Self Closing Drive-Thru Ready Access 275 Slider Window

SKU CSE-RA-275-SC-4743-1/4-CLEAR-L
Save 27% Save 24%
Original price $1,666.00
Original price $1,269.00 - Original price $1,750.00
Original price $1,666.00
Current price $1,270.00
$1,270.00 - $1,690.00
Current price $1,270.00
in stock icon

Usually Ships Within:

1-2 weeks + transit time
Size: 47½” (w) x 43½” (h)

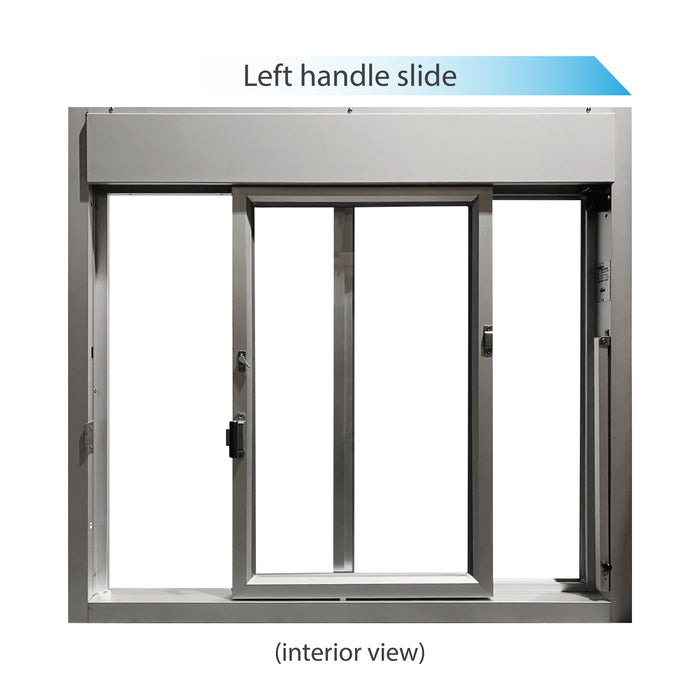

Slide: Left Hand Slide
Color: Standard Clear
CUSTOM QUOTE

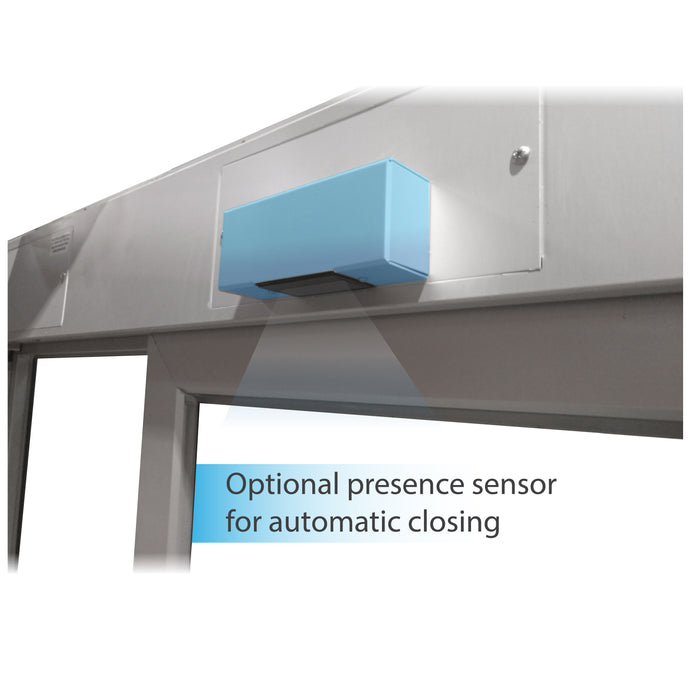

Presence Sensor Package
Factory-installed electromagnetic hold open and automatic close system for hands-free service that meets foodservice health code
Checkbox
This fully automatic system is activated by a presence sensor; simply break the light beam to open the window and it will close as you step away (Not compatible with the 35.75" window sizes)
Stainless Steel Shelf
Air Curtain Package
Includes an aluminum re-cleanable filter and magnetic door switch for auto on/off functionality (ships separately, field install required)

Preferred and Trusted Provider of Ready Access Products
Vendor Card Image

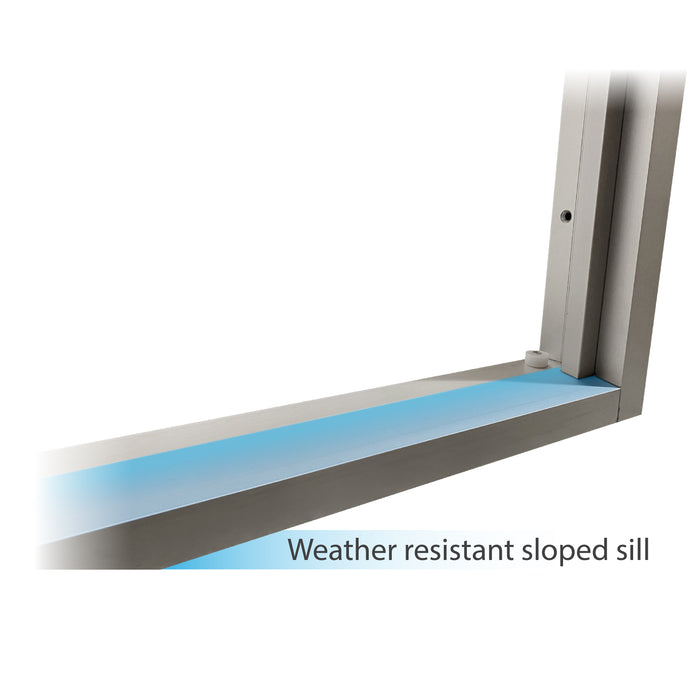

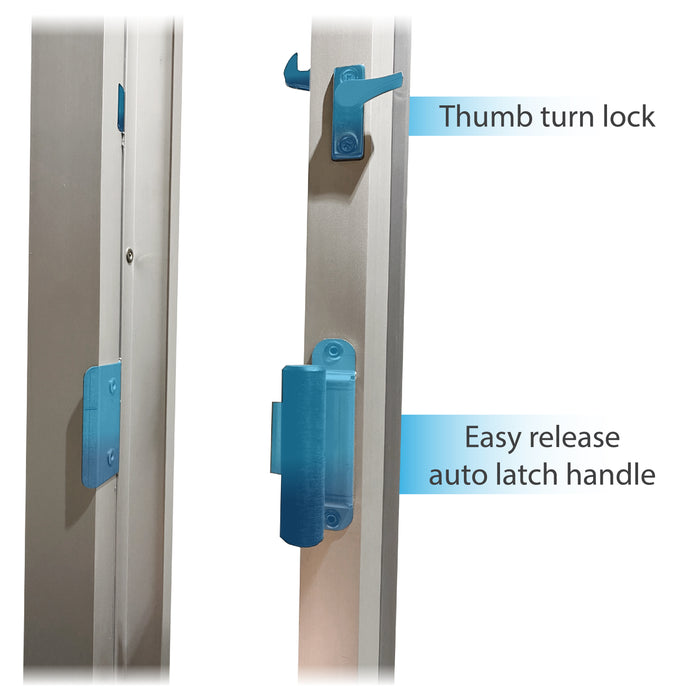

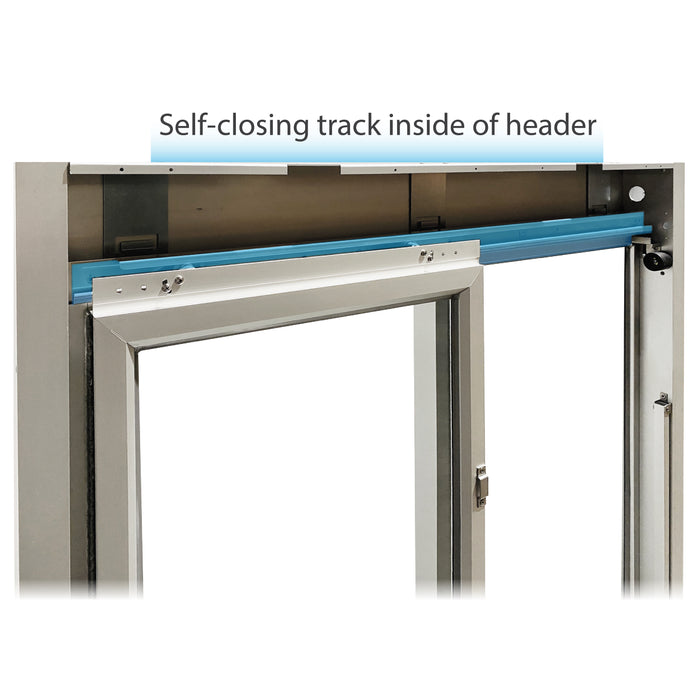

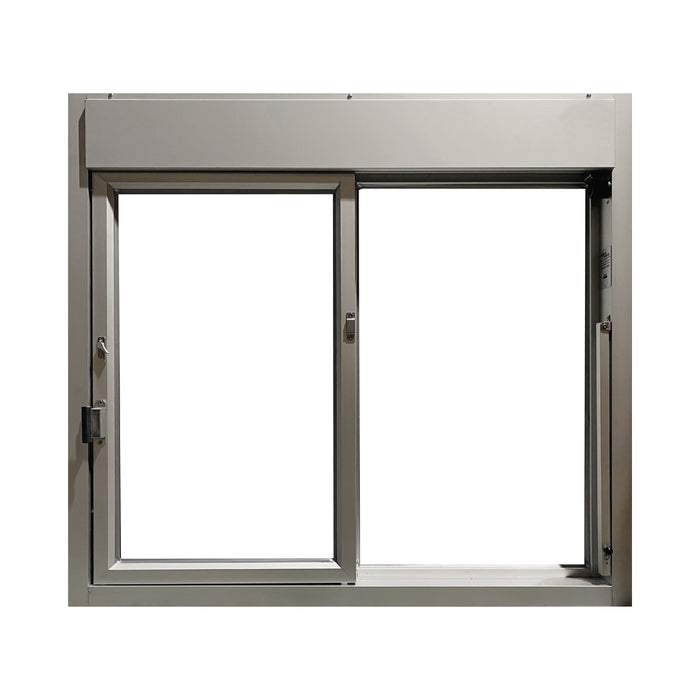

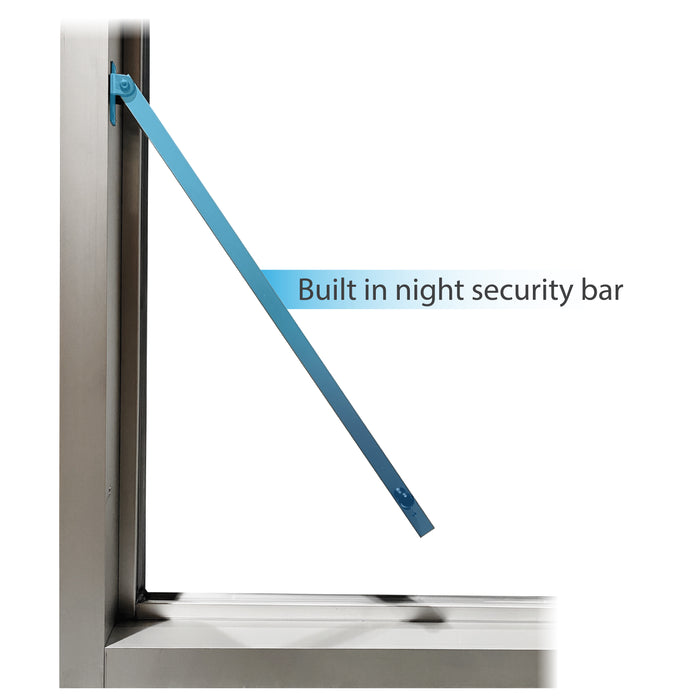

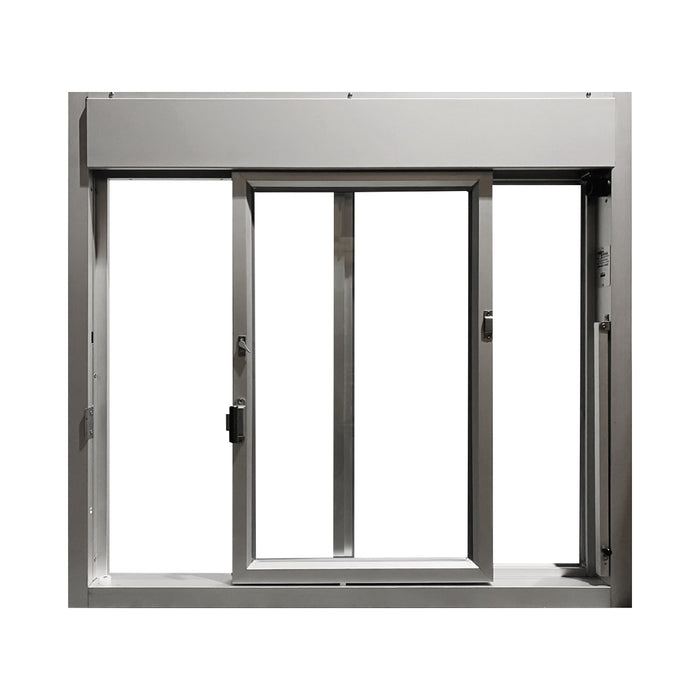

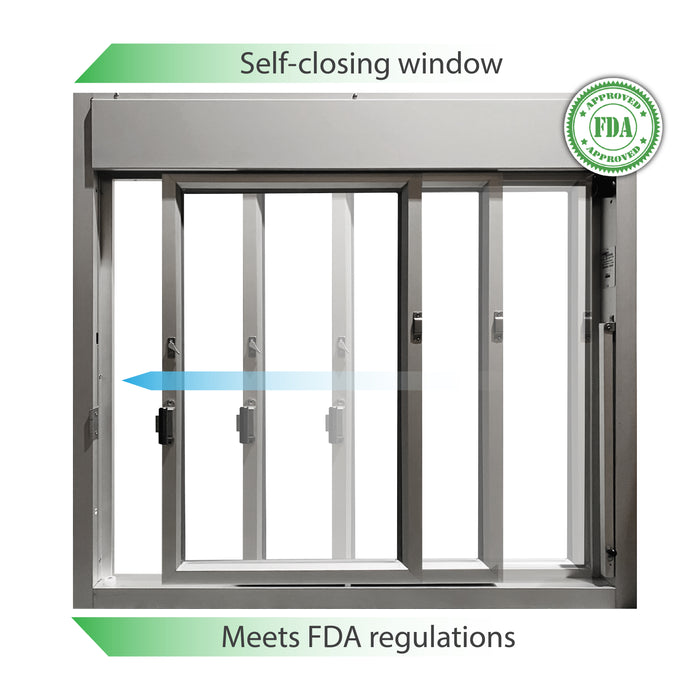

The 275 Single Panel Sliding Transaction Window offers high visibility, durability, and security. With a self-closing system, adjustable track, and weather-resistant sill, it’s ideal for commercial and food service use. It features an auto-latching lock, night security bar, and is available in customizable sizes and colored frame options. FDA-compliant and perfect for demanding environments.
MODELRA275-3535RA275-4735RA275-4743CUSTOM
Overall Size35-3/4" (W) x 35-3/4" (H)
Download Cut Sheet
Download CAD
47-1/2" (W) x 35-3/4" (H)
Download Cut Sheet
Download CAD
47-1/2" (W) x 43-1/2" (H)
Download Cut Sheet
Download CAD
Max: " (W) x " (H)
Rough Opening36-1/4" (W) x 36-1/4" (H)48" (W) x 36-1/4" (H)48" (W) x 44" (H)
Frame Depth4-1/2" (D)
Weight60 lbs70 lbs80 lbsPresence Sensor: 15 lbs

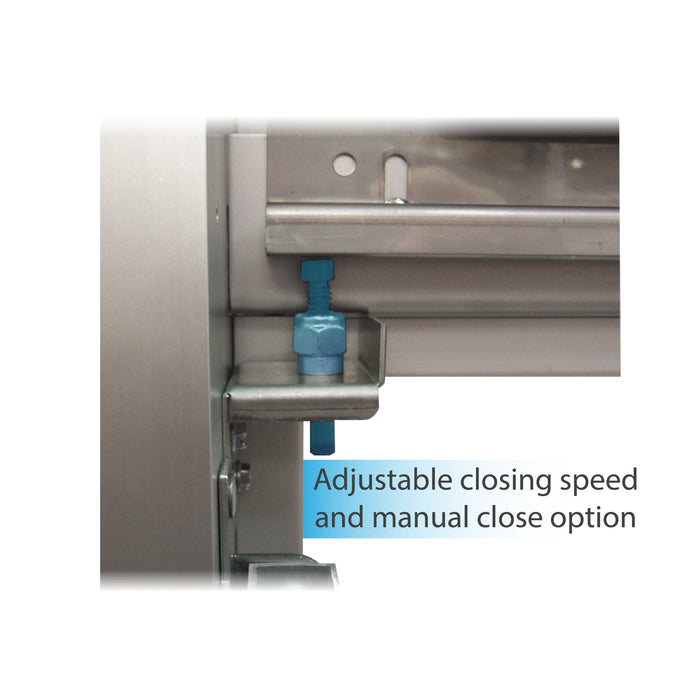

Operating SystemManual Open / Self Close adjustable to manual open/manual closeMOER - Manual Open / Electronic Release
Fully Automatic Release
Glazing1/4" Tempered - Download SpecificationTint
Low E Hard Coat
5/16 Laminated Safety Glass
Frame MaterialExtruded aluminum, ASTM B 221, Alloy 6063-T6 and 6063-T52

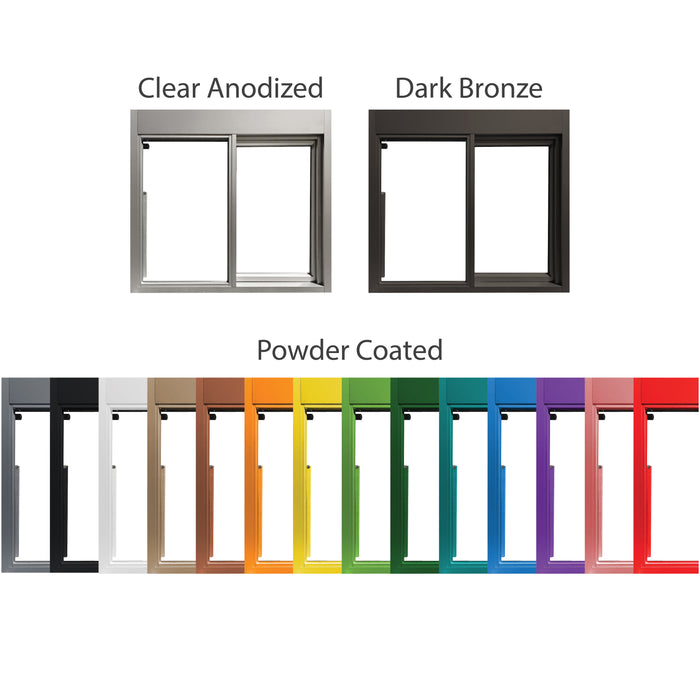

Frame ColorClear Aluminum
Dark Bronze

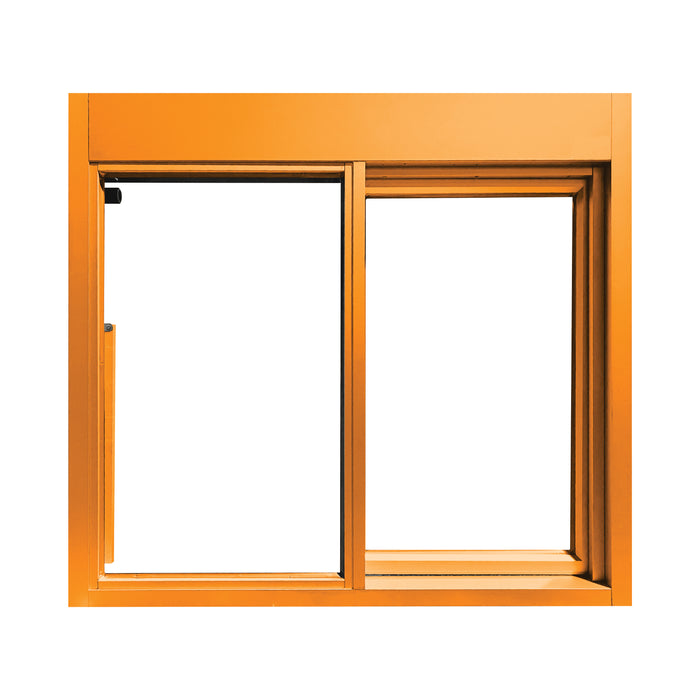

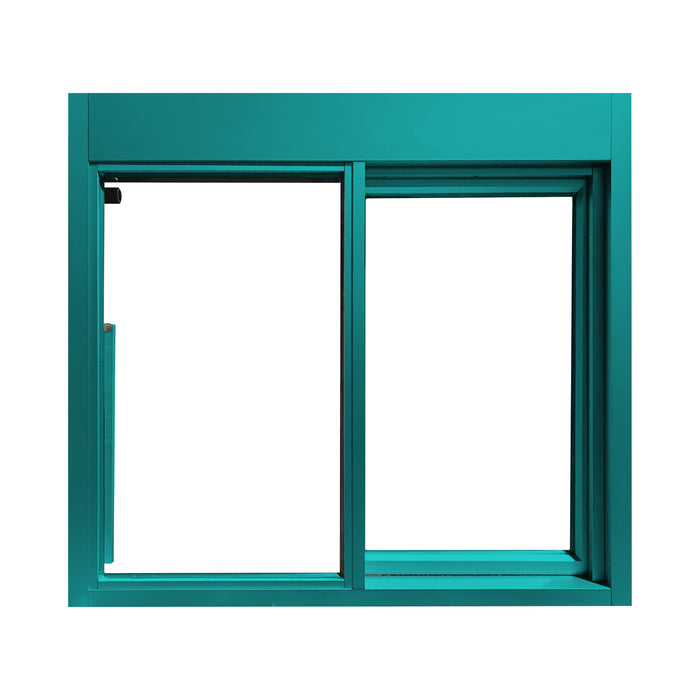

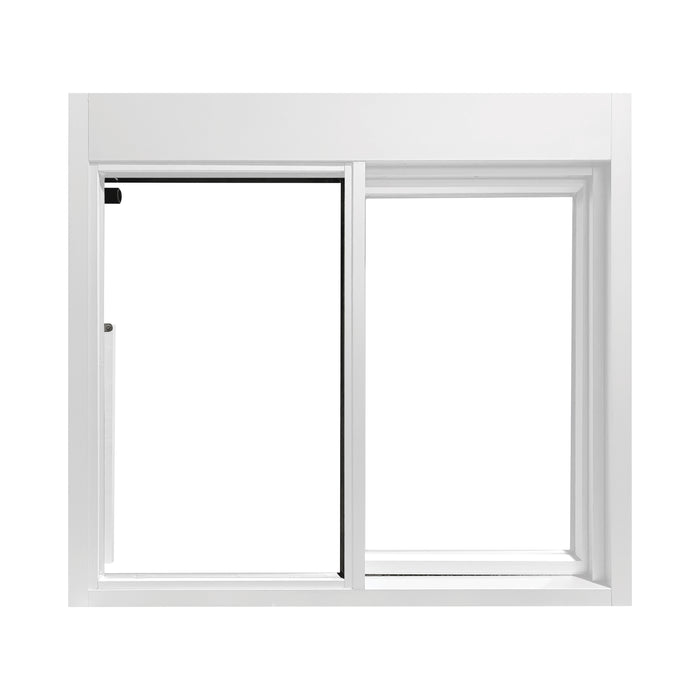

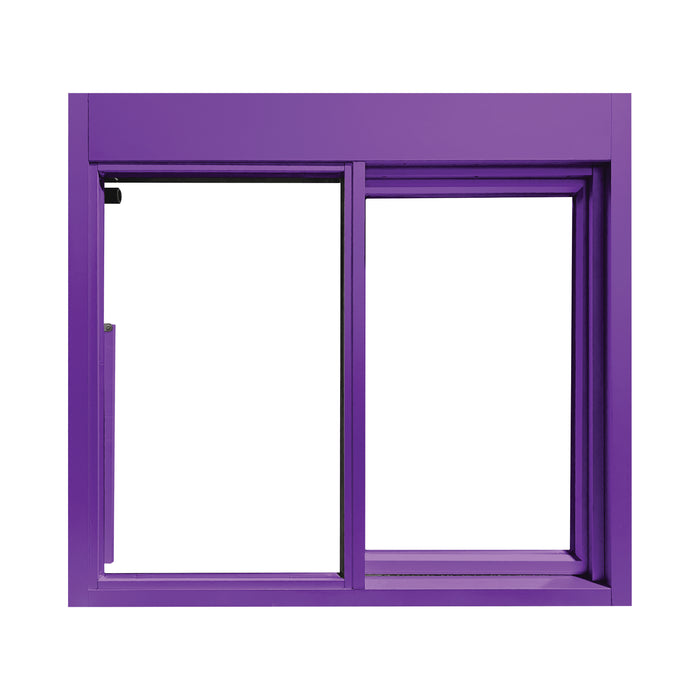

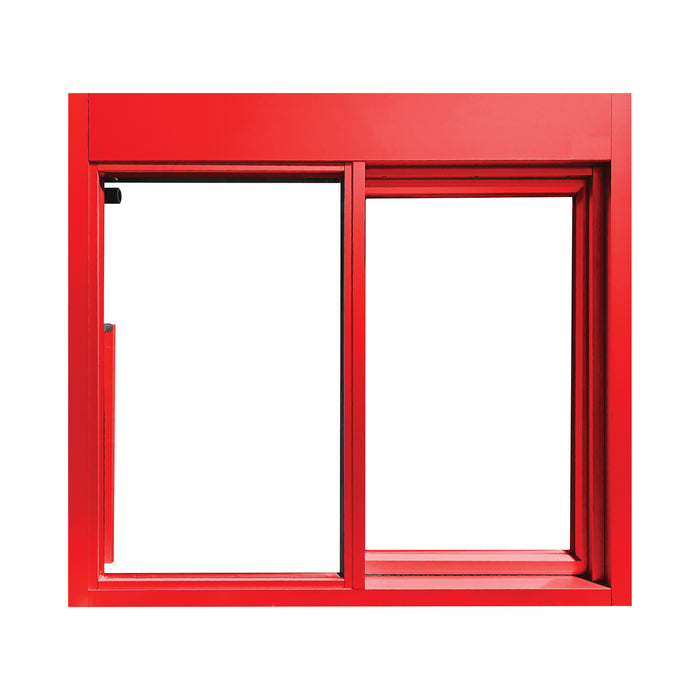

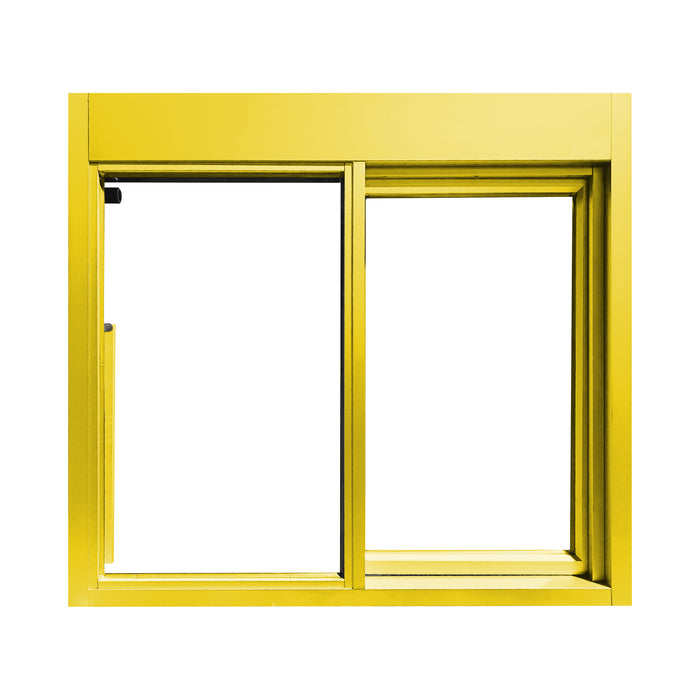

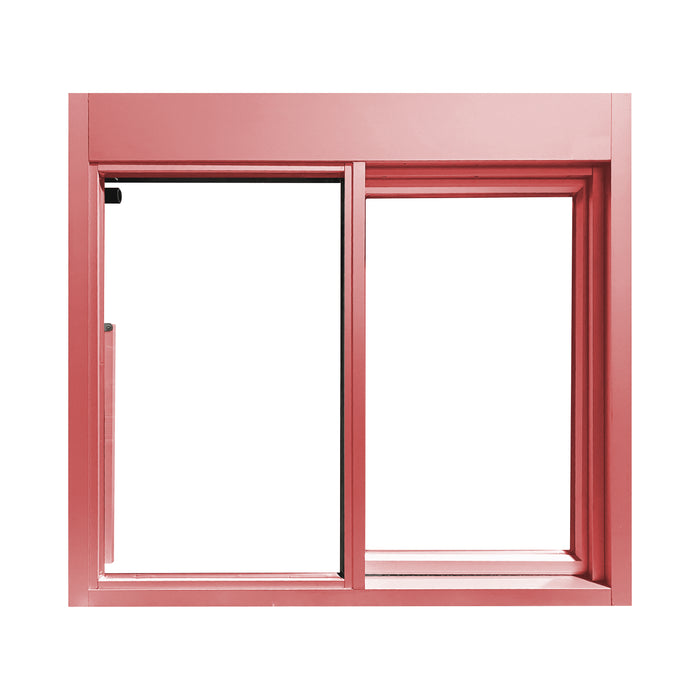

Powder Coated
EnvironmentInterior / Exterior application

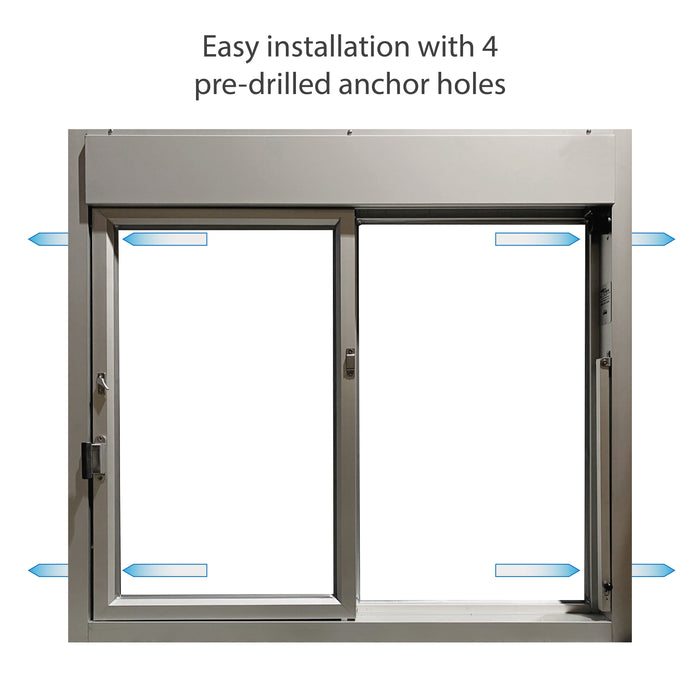

InstallationDownload Installation Instructions
TroubleshootingDownload Troubleshooting Document
Download Presence Sensor Troubleshooting Document
AssemblyShipped fully assembled, ready to install
Warranty12 Month - Standard Warranty
