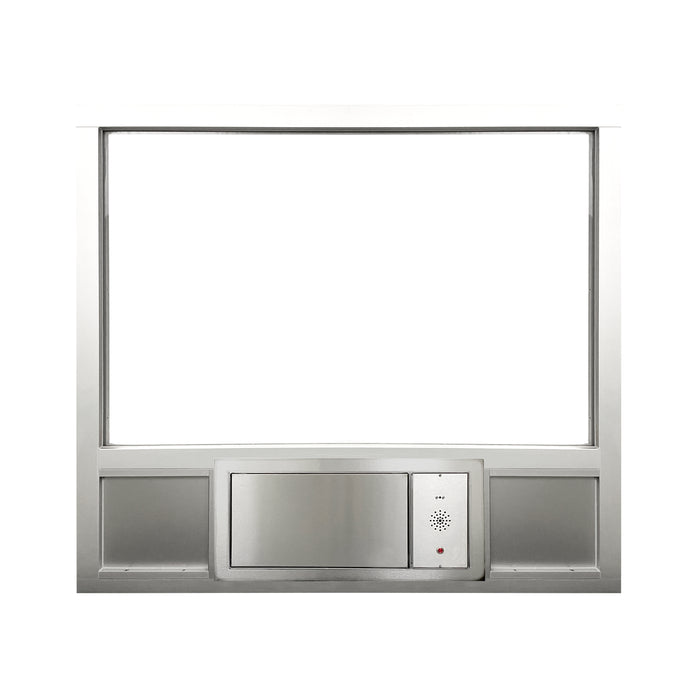

Large Transfer Walk Up Transaction Window Station | 50" (W) x 53-1/2" (H) | CSE-QS-TS-1019S-Max

SKU CSE-QS-TS-1019S-MAX-1/4-C | CSE-QS-1500A-PKG

Usually Ships Within:

Original price $4,980.00 - Original price $9,230.00
Original price
$4,980.00
$4,980.00 - $9,230.00
Current price $4,980.00
Color: Clear Anodized Aluminum
Size: 50" (w) x 53-1/2" (h)
Glazing: 1/4" Tempered
Custom Quote

The 1019S Transaction Station is the ideal unit for the transfer of large items in a walk up setting. It features an external customer speaker and intercom which is prewired to the attendant's intercom system. The transfer drawer is constructed of heavy duty stainless steel, designed for rugged industrial use. The unit is made in the USA and ships fully assembled, ready to install. Backed by a 12-month warranty.

  • Fully assembled
  • Glazing and framing
  • Transaction drawer
  • Intercom and module
  • Pre-wired and tested
  • Weather resistant
  • Self-locking door
  • Bullet resistant options
  • 12-month warranty
  • Made in the USA

Complete transaction transfer station covenant security equipment 1019s QuikservComplete transaction transfer station covenant security equipment 1019s QuikservComplete transaction transfer station covenant security equipment 1019s QuikservQuikserv transaction station 1019s covenant security equipment

Tech Specs

Details

Unit Size: 50"(W) x 53-1/2"(H)
Rough Opening: 50-3/8" (W) x 53-7/8" (H)
Frame depth: 4-1/2"
Transfer Area: 13-7/8"(W) x 7-1/2"(H) x 10-3/4"(D)

Shipping Weight
1/4" tempered:
Level 1 bullet resistant:
Level 3 bullet resistant:

Glazing Specifications

1/4" Tempered Glass

Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84

1/4 Tempered Glass Specification

Level 1 Glass

Ballistic Protection: 9mm UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >90%
Haze: <1%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,500 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: 1.2" min
Smoke density: max 8%, rating 5%
Auto ignition temperature: 870 F

Level 1 Acrylic Glass Specification

Level 3 Glass

Ballistic Protection: .44 magnum UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >85%
Haze: <1.5%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,400 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: .23" min
Smoke density: max 65%, rating 49%
Auto ignition temperature: 870 F

Level 3 Acrylic Glass Specification
