The California SC-4030 is Quikserv's 48" x 36" manual-open, self-closing drive-thru window, built with a glass panel in the sliding sash that limits the service opening to meet the California Retail Food Code. Slide it open to serve; let go and the door panel closes and locks on its own.

Choose your service opening

  • 216 sq in, no air curtain required. The factory glass panel limits the opening to 20-1/4" (W) x 10-7/8" (H).

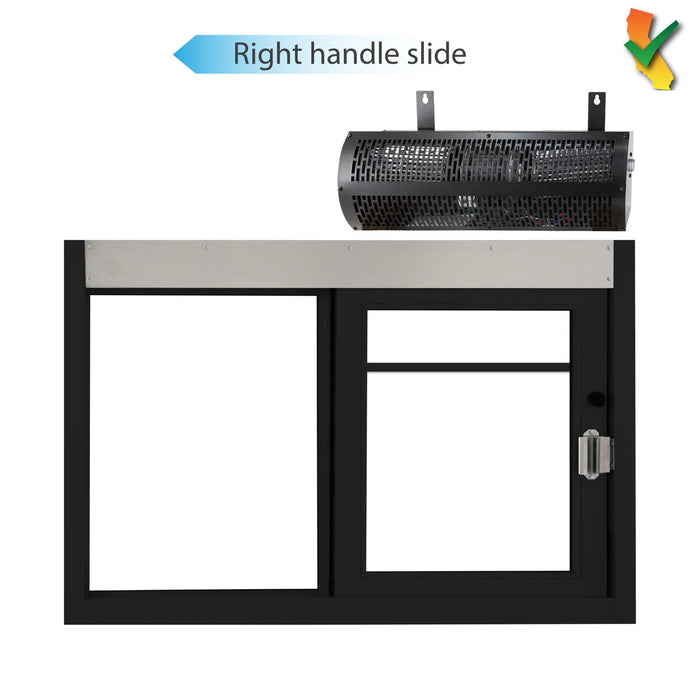

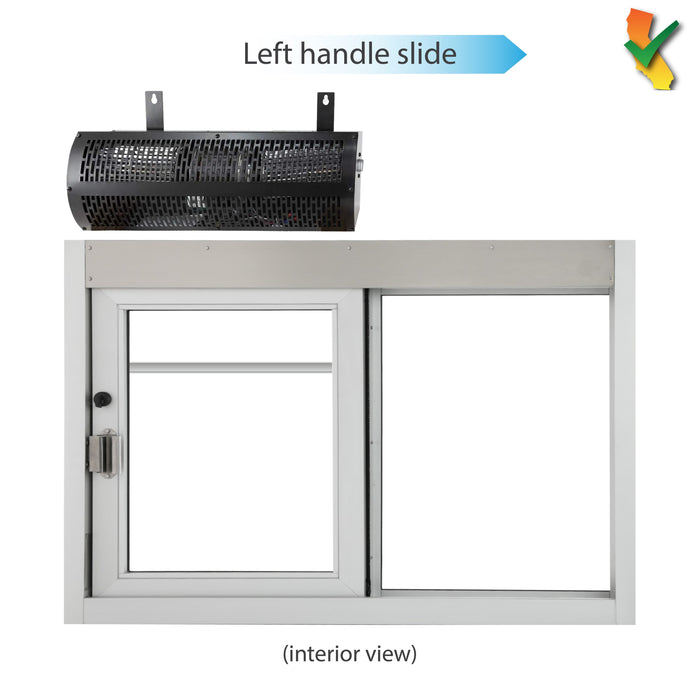

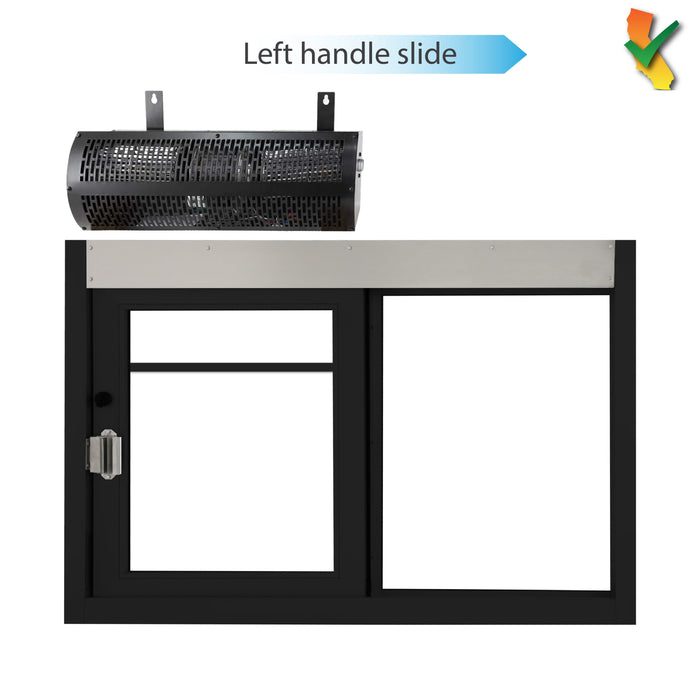

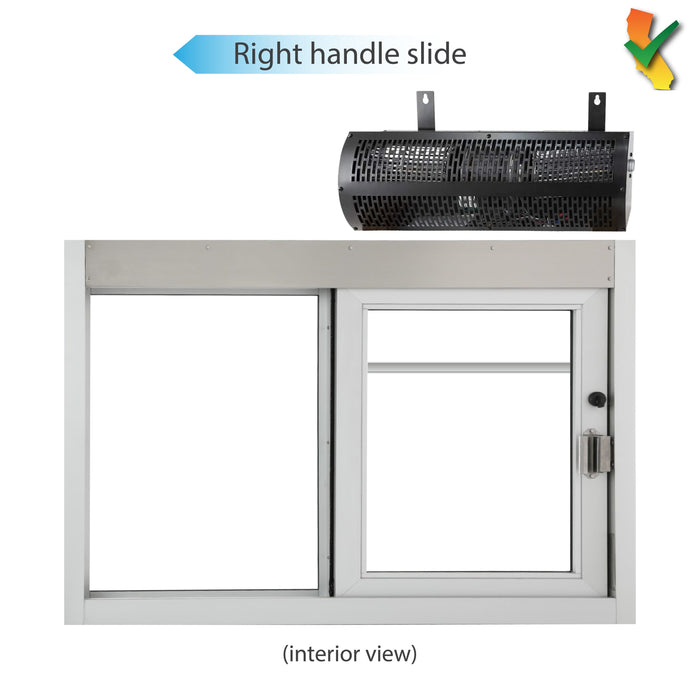

  • 432 sq in with a Quikserv air curtain. A smaller glass panel gives a 20" (W) x 21" (H) opening, paired with Quikserv's matching 25" non-heated or heated air curtain and a factory-installed microswitch. The air curtain ships with the window from Quikserv.

California Retail Food Code at a glance

  • Pass-through windows must be self-closing.
  • Service opening up to 216 sq in without an air curtain, or up to 432 sq in with one.
  • Multiple service windows must be at least 18" apart.

Requirements can vary by county. Confirm your plan with your local health department before ordering.

Specifications

  • Unit size: 48" (W) x 36" (H)
  • Rough opening: 48-3/8" (W) x 36-3/8" (H)
  • Frame depth: 4-1/2"
  • Glazing: 1/4" clear tempered safety glass
  • Frame: clear or dark bronze anodized aluminum with #304-#3 finish stainless steel
  • Left- or right-hand slide (viewed from the interior)
  • Shipped fully assembled from Quikserv by LTL freight

Air curtains need an electrical connection by a qualified electrician.

  • Built to meet the California Retail Food Code
  • Factory glass panel limits the opening to 216 or 432 sq in
  • 216 sq in units need no air curtain
  • 432 sq in units ship with a matching Quikserv non-heated or heated air curtain
  • Factory-installed microswitch on 432 sq in units
  • Manual open, self-closing, and self-locking every time it closes
  • Anodized aluminum and #304 stainless steel, 1/4 in. tempered glass
  • Shipped fully assembled and ready to install
  • 12-month warranty backed by nationwide service centers

General

SKU
CSE-QS-SC-4030-1/4-C-L-CAL216
Model
SC-4030

Dimensions (CSE-QS-SC-4030-1/4-C-L-CAL216)

Actual Size
48 in W × 36 in H
Rough Opening
48.38 in W × 36.38 in H
Service Opening
20.25 in W × 10.88 in H
Frame Depth
4.5 in
Weight
90 lb
