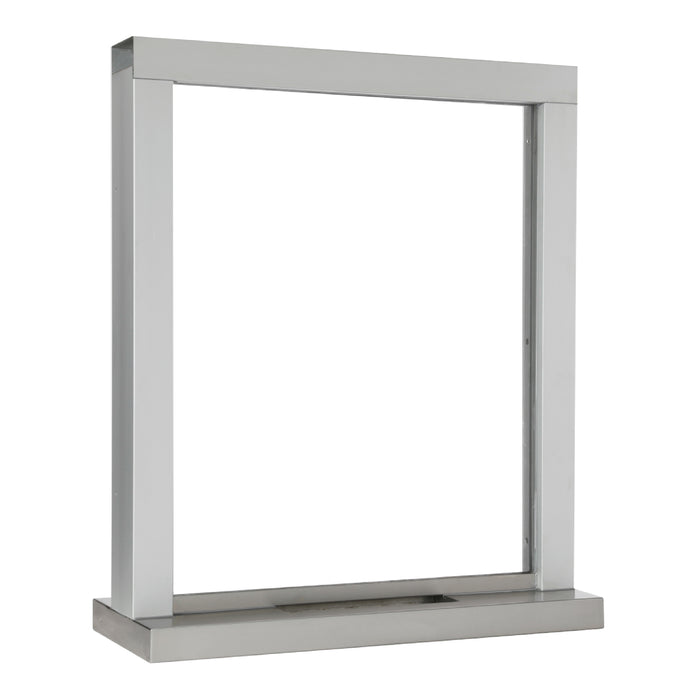

Ticket window speak around clear anodized aluminum

Quikserv T3 Ticket Teller Window With Speak Around Frame and Deal Tray Shelf

Item #CSE-QS-TW3-2436-CX Model #T3-2436
2,22500
$2,225.00 - $5,900.00
$2,225.00 - $5,900.00
2,22500
Bestseller
Get it Fast
Built-to-Order
Submittal

Typically ships in 4-5 weeks after approved drawings (if applicable)

Overstock Available

Faster & Save

We have an overstock CSE-QS-TW3-3636-L3-CX-FAH in stock at a discounted price with faster shipping than the standard built-to-order option.

Ships in 2-3 days Faster than standard lead time
Limited Quantity While supplies last
View Overstock Option

Submittal required

Shop drawings will be provided for approval prior to fabrication

Order received. We review the order details and begin preparing your submittal package. After we receive your order, we send submittal drawings for review and approval prior to fabrication. This can take up to 1-2 weeks. Once submittals are approved, your order moves into fabrication. After fabrication is complete, your order ships and is delivered.
Order
Received Submittal
Approval Fabrication Delivery

Ships via LTL Freight

Ships via LTL Oversize Freight!

This product ships via LTL freight due to its size or weight. Someone must be available to receive the shipment, inspect for damages, and sign the delivery receipt. Please provide accurate delivery contact information when placing your order.

This product ships via LTL freight due to its size and weight. Please ensure that your delivery location is equipped with either a forklift or a loading dock to safely offload the shipment. If your site is not equipped for LTL delivery, additional delivery arrangements may be required and could result in extra charges.

Quikserv logo

Get exactly what you need!

We'll deliver a custom quote tailored to your specifications.

Request a Custom Quote







TW3 ticket window series

    Step right up.

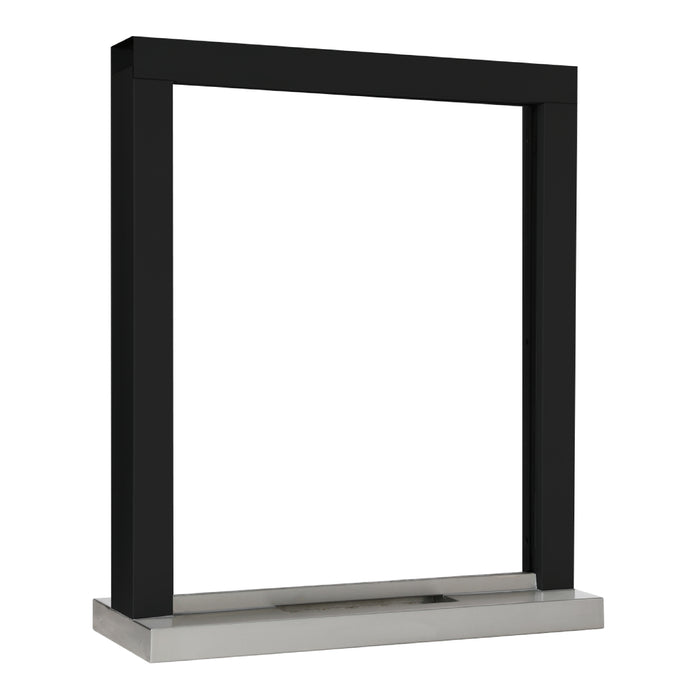

    The TW3 is an economical option perfect for banks and financial
    service companies, or anywhere else where the transfer of

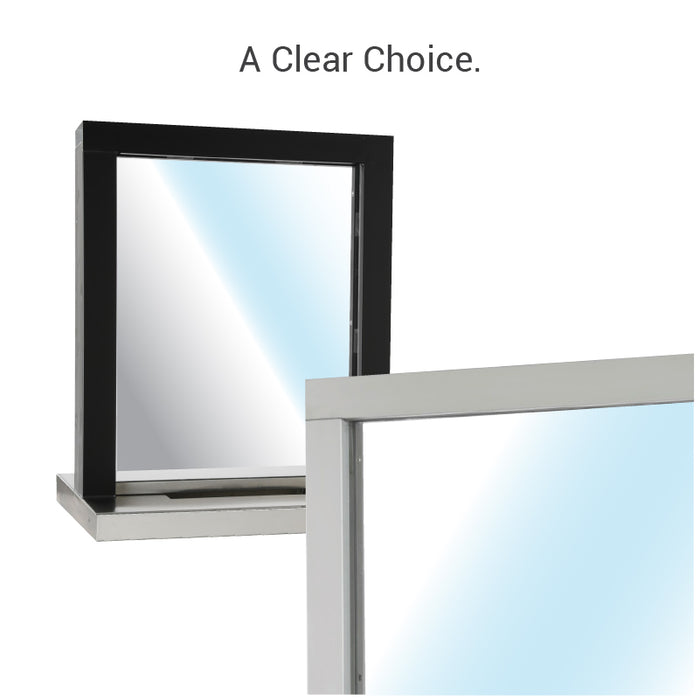

    small items is necessary. Available in your choice of clear
    anodized or dark bronze finish, with three standard sizes to
    choose from. Custom sizes and colors can be quoted upon request.


    Ticket window color and size options

    Clear communication. Simple exchange.

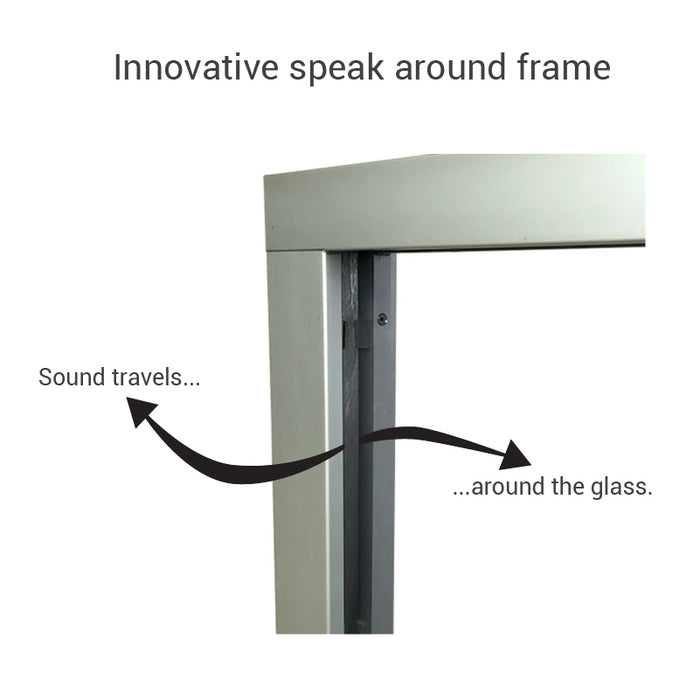

    Easily hear your customers and be heard with the
    innovative and aesthetically pleasing speak around frame.

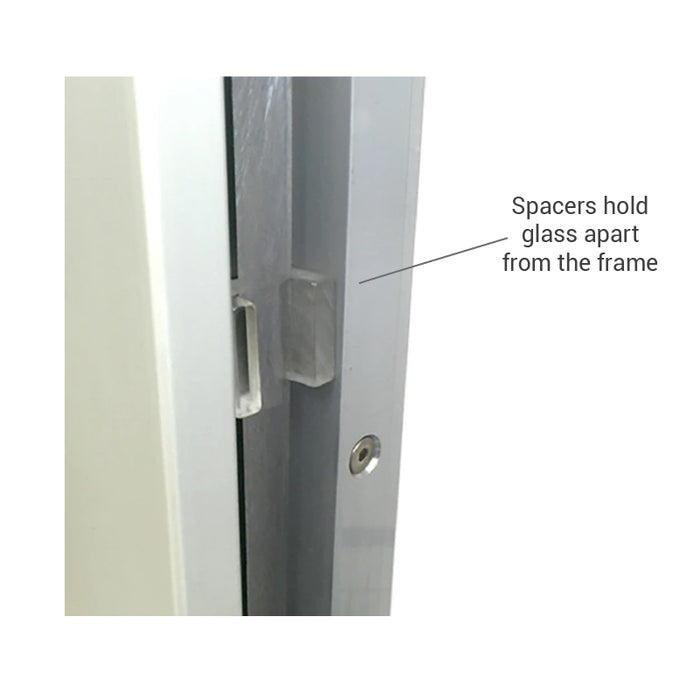

    Spacers hold the glass apart from the frame, allowing
    sound to pass around the glass, making communication
    possible without the obstructed view of a speak-thru.

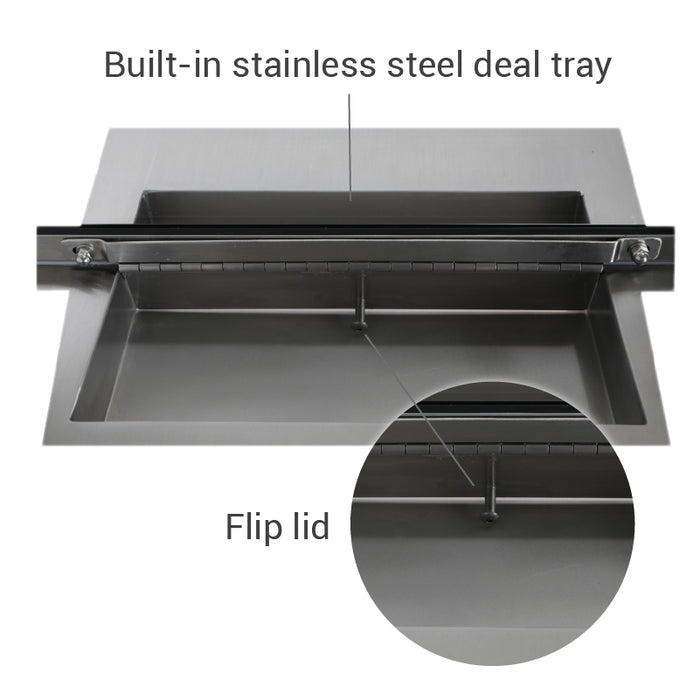

    The built-in stainless steel deal tray makes it easy to transfer cash,
    tickets, and other small items.     The deal tray comes with a
    pre-installed flip lid to seal up     the opening and
    prevent drafts from entering the building.

    Ticket window speak around and deal tray details
    Customization
    • 1/4" tempered safety glass
    • Level 1 bullet resistance
    • Level 3 bullet resistance
    • Clear anodized frame
    • Dark bronze frame

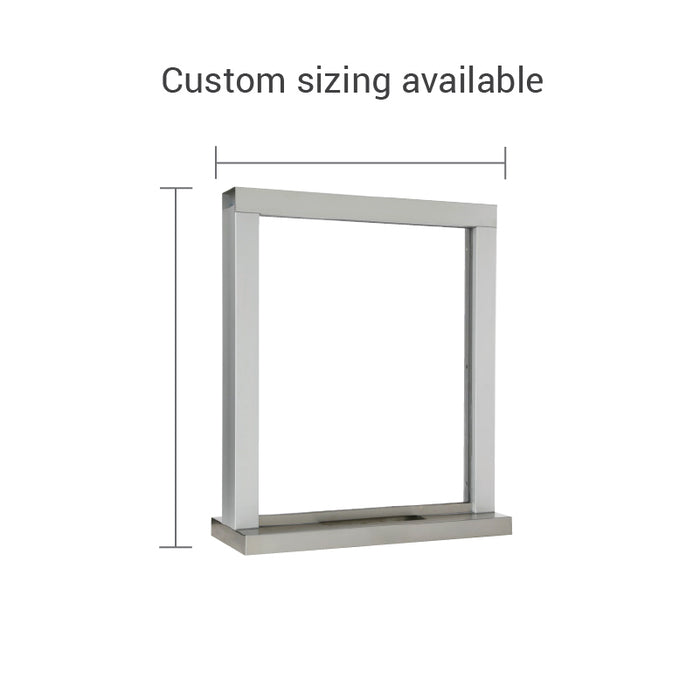

    • Custom sizes and colors upon request

    Tech Specs

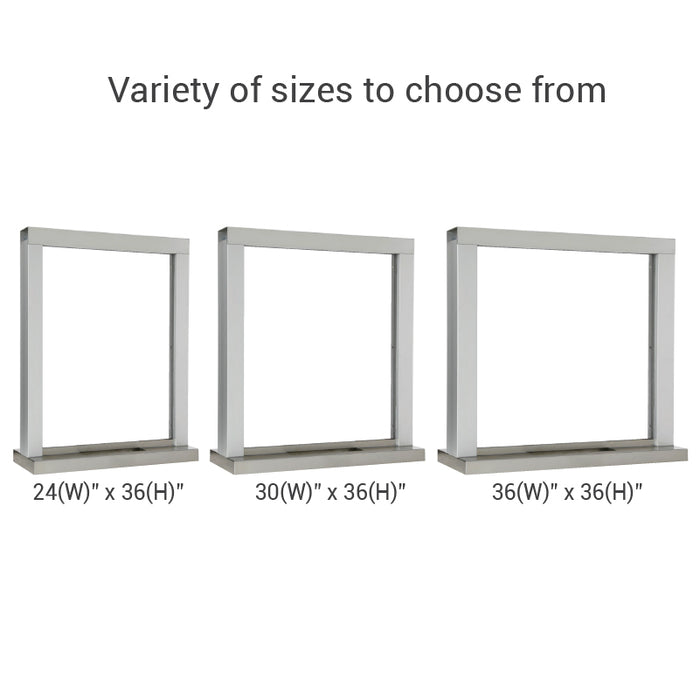

    Dimensions

    TW3-2436

    Window Unit Size: 24" (W) x 36" (H)
    Rough Opening: 24-3/8" (W) x 36-3/8" (H)



    TW3-3036

    Window Unit Size: 30" (W) x 36" (H)
    Rough Opening: 30-3/8" (W) x 36-3/8" (H)



    TW3-3636

    Window Unit Size: 36" (W) x 36" (H)
    Rough Opening: 36-3/8" (W) x 36-3/8" (H)

    Glazing Specifications

    1/4" Tempered Glass

    Thickness: .25"
    Weight (lbs/sq ft.): 2.87

    Level 1 Glass

    Thickness: 1.25"
    Weight (lbs/sq ft.): 7.7
    Protection: 9mm
    U.L. Designation: 752, Level 1

    Level 3 Glass

    Thickness: 1.25"
    Weight (lbs/sq ft.): 7.7
    Protection: .44 magnum
    U.L. Designation: 752, Level 3

    Downloads

    General

    SKU
    CSE-QS-TW3-2436-CX
    Model
    T3-2436

    Dimensions (CSE-QS-TW3-2436-CX)

    Frame Depth
    4.5 in

    Quote clipboard

    Need a Custom Product?

    Get a personalized quote just for you.

    Request a Quote
    Questions?
    Questions?
    Give us a call: (866) 286-4400
    Custom Products
    Custom Products
    Designed to your exact specs
    Expert Support
    Expert Support
    Our product specialists are ready to help
    Warranty
    Warranty
    Covered by our 12-month warranty
    MODELTW3-2436TW3-3036TW3-3636CUSTOM
    Overall Size24" (W) x 36" (H)
    Download Cut Sheet    		30" (W) x 36" (H)
    Download Cut Sheet    		36" (W) x 36" (H)
    Download Cut Sheet    		Max: " (W) x " (H)
    Download Cut Sheet
    Rough Opening24-3/8" (W) x 36-3/8" (H)24-3/8" (W) x 36-3/8" (H)36-3/8" (W) x 36-3/8" (H)
    Frame Depth4-1/2" (D)
    Shelf Depth12" (D)
    Weight1/4" Tempered: 52 lbs
    Level 1 Bullet: 78 lbs
    Level 3 Bullet: 115 lbs    		1/4" Tempered: 65 lbs
    Level 1 Bullet: 99 lbs
    Level 3 Bullet: 145 lbs    		1/4" Tempered: 78 lbs
    Level 1 Bullet: 112 lbs
    Level 3 Bullet: 174 lbs
    Glazing1/4" Tempered - Download Specification
    Level 1 Bullet Resistant Acrylic - Download Specification
    Level 3 Bullet Resistant Acrylic - Download Specification    		1/4" Tempered
    Level 1 Bullet Resistant
    Level 3 Bullet Resistant
    Polycarbonate
    Frame Material1/4" Tempered: Anodized aluminum and #304-#3 stainless steel
    Bullet Resistant: Loaded aluminum frame and #304-#3 stainless steel
    UL 752 RatingLevel 1 Bullet Resistant Protection - 9mm
    Level 3 Bullet Resistant Protection - .44mag
    Frame ColorClear Aluminum
    Dark Bronze    		Clear Aluminum
    Dark Bronze
    Powder Coated
    CommunicationSpeak Around Frame
    Transaction12" (W) x 4" (H) Slide Up Pass Through
    EnvironmentInterior application
    Exterior application with roof overhang
    InstallationDownload Installation Instructions
    AssemblyShipped fully assembled, ready to installGlazing dropshipped separately for larger sizes
    Warranty12 Month - Standard Warranty
    ArchitectDownload Product Data Sheet | Download 3-Part Spec
