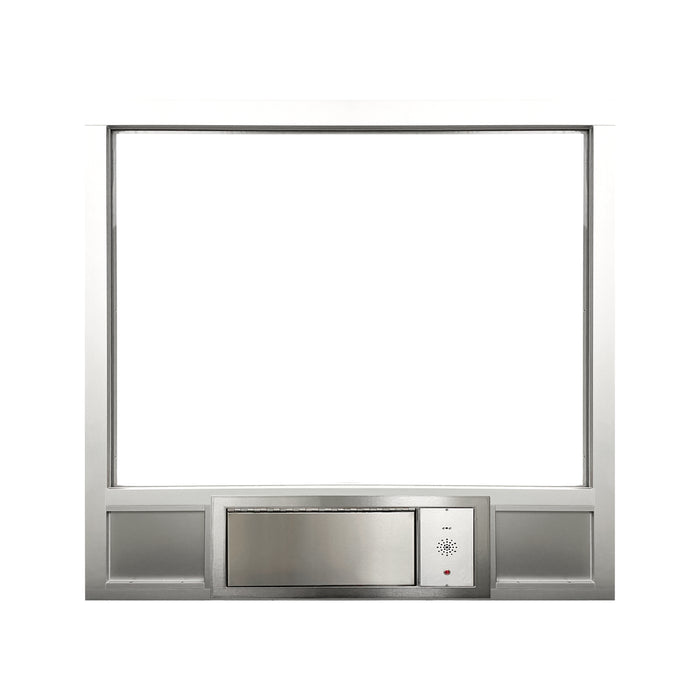

Medium Transfer Drive-thru Transaction Window Station | 40" (W) x 49-1/4" (H) | CSE-QS-TS-619S-Mid
Usually Ships Within:
The 619S Transaction Station is the ideal unit for the transfer of medium items in a drive thru setting. It features an external customer speaker and intercom which is prewired to the attendant's intercom system. The transfer drawer is constructed of heavy duty stainless steel, designed for rugged industrial use. The unit is made in the USA and ships fully assembled, ready to install. Backed by a 12-month warranty.
- Fully assembled
- Glazing and framing
- Transaction drawer
- Intercom and module
- Pre-wired and tested
- Weather resistant
- Self-locking door
- Bullet resistant options
- 12-month warranty
- Made in the USA
Tech Specs
Details
Unit Size: 40"(W) x 49-1/4"(H)
Rough Opening: 40-3/8" (W) x 49-5/8" (H)
Frame depth: 4-1/2"
Transfer Area: 10-1/2"(W) x 3-7/8"(H) x 13-1/8"(D)
Shipping Weight
1/4" tempered:
Level 1 bullet resistant:
Level 3 bullet resistant:
Glazing Specifications
1/4" Tempered Glass
Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84
1/4 Tempered Glass Specification
Level 1 Glass
Ballistic Protection: 9mm UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >90%
Haze: <1%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,500 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: 1.2" min
Smoke density: max 8%, rating 5%
Auto ignition temperature: 870 F
Level 1 Acrylic Glass Specification
Level 3 Glass
Ballistic Protection: .44 magnum UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >85%
Haze: <1.5%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,400 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: .23" min
Smoke density: max 65%, rating 49%
Auto ignition temperature: 870 F
Level 3 Acrylic Glass Specification
