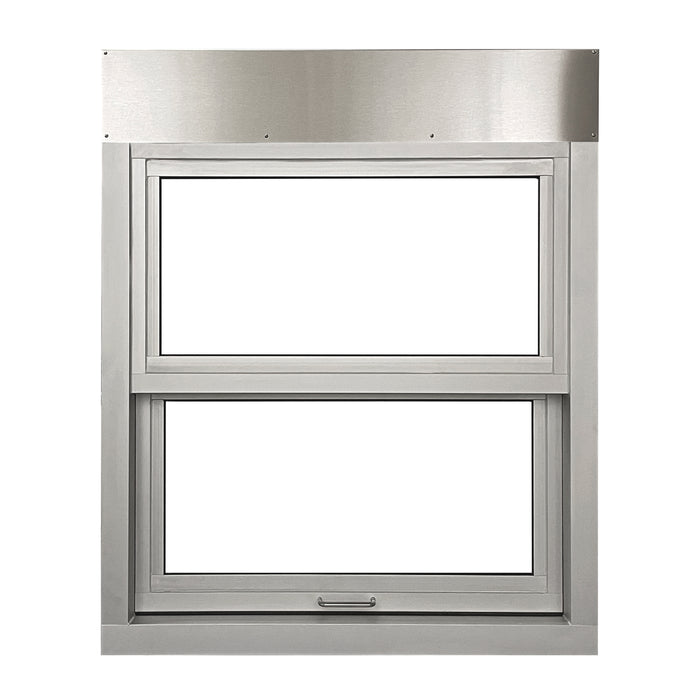

SUI Vertical Lift Transaction Drive-up/Walk-up Window | Manual and Electric Options
Usually Ships Within:
Looking up.
Our vertical lift transaction windows are the perfect pass-through windows for multiple service areas, walk-up service counters, and areas with limited space. These industrial grade commercial windows are weather sealed and designed for heavy use day in and day out. Comes in three standard sizes with custom sizes available upon request.
The model SUI200 is a manually operated window with a 7" stainless steel handle and will remain open at the height of your choice.
The model SUI100 is a hands-free automated window with a built-in optic sensor that will detect your presence and open and close automatically.
Tech Specs
Details
*No speak thru available on 1" insulated and Bullet Resistant units.
*Not built for sterilized environment.
SUI-100
Electric automatic window.
Logic lock options:
- Standard: Allows the ‘hands-free’ operation of the window through the optic sensor.
- Peak Period: Opens the window and keeps it open until this mode is disengaged.
- Night Latch: Disengages the optic sensor and engages a plunger lock to secure the window.
SUI-200
Manually operated window.
Dimensions
24" (w) x 30" (h) | Service opening: 20" (w) x 8-5/8" (h)
24" (w) x 48" (h) | Service opening: 20" (w) x 17-3/4" (h)
36" (w) x 48" (h) | Service opening: 32" (w) x 17-5/8" (h)
Custom size options:
Minimum
Electric: 24" (w) x 30" (h)
Manual: 24" (w) x 30" (h)
Maximum
Electric: 40" (w) x 50" (h)
Manual: 40" (w) x 50" (h)
Glazing Specifications
1/4" Tempered Glass
Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84
1/4 Tempered Glass Specification
Level 1 Glass
Ballistic Protection: 9mm UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >90%
Haze: <1%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,500 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: 1.2" min
Smoke density: max 8%, rating 5%
Auto ignition temperature: 870 F
Level 1 Acrylic Glass Specification
Level 3 Glass
Ballistic Protection: .44 magnum UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >85%
Haze: <1.5%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,400 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: .23" min
Smoke density: max 65%, rating 49%
Auto ignition temperature: 870 F
Level 3 Acrylic Glass Specification
