Security Exchange / Ticket Windows & Package Receivers:

Used in cash express locations, ticket booths, hotels, security deposit locations, and where security is required for the transfer of funds or smaller items. Package receivers used in secure areas where larger items are safely transferred.

UL Rated Level 3 Framing report #BP20789-20140501

******************************************

Model T1 - 2436S:

Rough Opening: 24-3/8 inches (w) x 36-3/8 inches (h). [Custom size as indicated on Drawings plus 3/8 inch on all sides.]

Glazing:

[Level 1 Bullet Resistant.]

Finish: [Bronze.] [Clear.] [Stainless.] [Custom Color.]

UL Rated Level 3 framing available

Model T1 - 3036S:

Rough Opening: 30-3/8 inches (w) x 36-3/8 inches (h). [Custom size as indicated on Drawings plus 3/8 inch on all sides.]

Glazing:

[Level 1 Bullet Resistant.]

Finish: [Bronze.] [Clear.] [Stainless.] [Custom Color.]

UL rated Level 3 framing available

Model T1 - 3636S:

Rough Opening: 36-3/8 inches (w) x 36-3/8 inches (h). [Custom size as indicated on Drawings plus 3/8 inch on all sides.]

Glazing:

[Level 1 Bullet Resistant.]

Finish: [Bronze.] [Clear.] [Stainless.] [Custom Color.]

UL Rated Level 3 framing available

Details

Acrylic speak thru not available with 1/4" tempered glass.

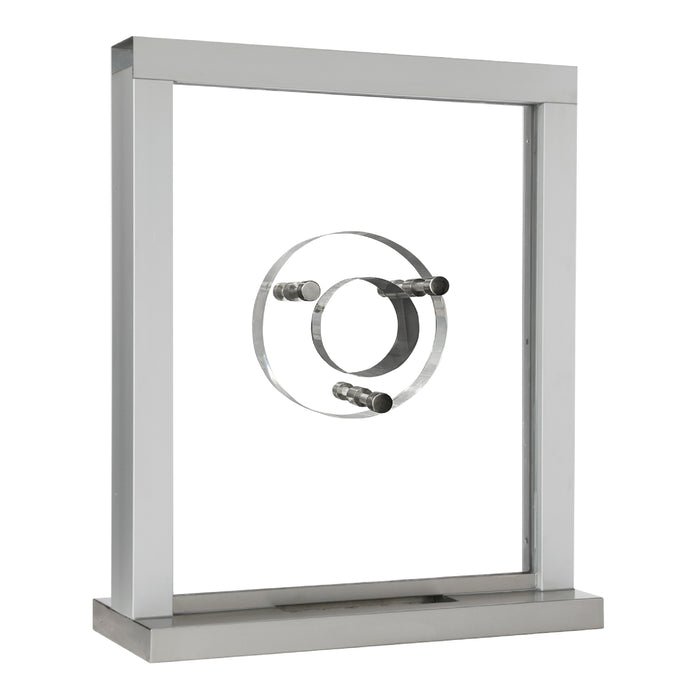

Acrylic speak thru: 10"

TW4-2436

Window Unit Size: 24" (W) x 36" (H)
Rough Opening: 24-3/8" (W) x 36-3/8" (H)
Frame depth: 4-1/2"

Shipping Weight
Level 1 bullet resistant:
Level 3 bullet resistant:

TW4-3036

Window Unit Size: 30" (W) x 36" (H)
Rough Opening: 30-3/8" (W) x 36-3/8" (H)
Frame depth: 4-1/2"

Shipping Weight
Level 1 bullet resistant:
Level 3 bullet resistant:

TW4-3636

Window Unit Size: 36" (W) x 36" (H)
Rough Opening: 36-3/8" (W) x 36-3/8" (H)
Frame depth: 4-1/2"

Shipping Weight
Level 1 bullet resistant:
Level 3 bullet resistant:

Glazing Specifications

Level 1 Glass

Ballistic Protection: 9mm UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >90%
Haze: <1%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,500 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: 1.2" min
Smoke density: max 8%, rating 5%
Auto ignition temperature: 870 F

Level 1 Acrylic Glass Specification

Level 3 Glass

Ballistic Protection: .44 magnum UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >85%
Haze: <1.5%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,400 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: .23" min
Smoke density: max 65%, rating 49%
Auto ignition temperature: 870 F

Level 3 Acrylic Glass Specification
