Ready Access 550/650 Walk Up Double Slider Concessions Window

SKU CSE-RA-550-SCDS-8435-1/4-CLEAR

Usually Ships Within:

Original price $2,250.00 - Original price $4,650.00
Original price
$2,250.00
$2,250.00 - $4,650.00
Current price $2,250.00
Size: 84" (W) x 35.75" (H)
Glass: 1/4" Tempered
Color: Clear Anodized
Custom Quote

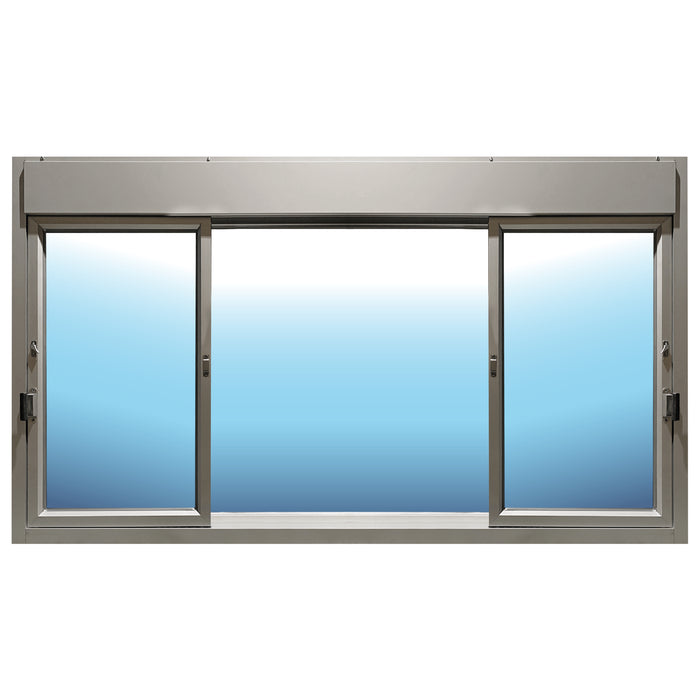

Ready Access 550 Double Panel Walk Up Service WIndow

550/650 WALK UP SERVICE WINDOW

The 550 window features two service openings in one window. There is a fixed center pane with two independently operating panels that slide toward the center. Smoothly and easily opens and closes on overhead rollers, which makes for a track-free sill that is easy to keep clean. Perfect for use as a concession window or food truck window. Also popular for interior office, pharmacy, or convenience store applications.

Anodized aluminum extrusions and ¼” tempered glass combine to give you an attractive, functional, affordable transaction window that will not rust, pit or weather.  Track free bottom sill provides for a contaminant free serving surface.  Bottom sill is angled downward to ensure rain, sleet and snow are deflected away from the interior. The 550 is so simple to operate. The service door slides open effortessly then automatically slide shut and self latches every time it closes so it cannot be pushed open from the outside. Also includes a thumb turn lock and night locking bar.

APPLICATIONS

  • Restaurants
  • Ticket Windows
  • Teller Windows
  • Restaurant Walk Up
  • Concession Windows
  • Convenience Store
  • Dispensary
  • Distribution Center
  • Guard Shack
  • Liquor Store
  • Medical Office/Hospital
  • Office Reception
  • Park / Zoo
  • Parking Garage
  • Pharmacy Interior
  • Scale House
  • School
  • Park Districts
  • Stadiums
 Tech Specs



Details

Installation screw holes: 1/4"

Weight

1/4" Tempered:

95.5" (W) x 35.75" (H):  lbs

84" (W) x 35.75" (H)):  230 lbs

3/4" Solarban:

95.5" (W) x 35.75" (H):  lbs

84" (W) x 35.75" (H)):  230 lbs

Dimensions

Window unit size: 95.5" (W) x 35.75" (H) x 4" (D)
Service opening: 19" (W) x 27.25"(H)
Rough Opening: 96" (W) x 36.25" (H)

Window unit size: 84" (W) x 35.75" (H) x 4" (D)
Service opening: 17" (W) x 27.25"(H)
Rough Opening: 84.5" (W) x 36.25" (H)

Glazing

-1/4" clear tempered glass

-ENERGY SAVER  Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass

Downloads

Three-sided Drawing

Installation and Service Manual for Window

Warranty

Covered by our 12-month Warranty
