Whataburger drive thru window Quikserv Covenant Security Equipment

Whataburger | Drive Thru Slider Windows

Name: Whataburger | Drive Thru Slider Windows
Brand: Quikserv
SKU: CSE-QSR-DD-SC-3030-1/4-C-R
Price: 1250.0 USD
Availability: InStock

by Quikserv

SKU CSE-QSR-DD-SC-3030-1/4-C-R

$1,250.00 - $4,400.00

$1,250.00

$1,250.00 - $4,400.00

$1,250.00

Usually Ships Within:

5-7 business days + transit time

Drive Thru Window: 36" (W) x 36" (H) | Self Closing | 1/4" Tempered Glass

36" (W) x 36" (H) | Self Closing | 1/4" Tempered Glass

53-1/2" (W) x 40" (H) | Fully Automatic | Bump Out with Shelf | 1'4" Tempered Glass

Color: Standard Clear

Slide Direction: Right Handle

Right Handle

Left Handle

Bi-Parting

Quantity

CUSTOM QUOTE

Your selections will add an additional charge of

Warranty

Covered by our 12-month Warranty

Give Us A Call

+1 (866) 286-4400

Industrial Quality

Designed for commercial use.

Overview
Tech Specs
Downloads

Overview

These drive thru, self closing windows are commonly installed in Whataburger quick service restaurants.

CONFIGURATIONS COMMON IN WHATABURGER RESTAURANTS

53-1/2" (W) x 40" (H) | Fully Automatic | Bump Out with Shelf | 1'4" Tempered Glass | Quikserv 9039-BX / 9040 CX

Boasting a projected design with a staging area, this pass-thru window allows users to view oncoming traffic in the drive-thru lane. This unit has two doors that open simultaneously, allowing you to serve your customers more efficiently. Activation of the unit is made complete through the use of the Thru-Beam PhotoElectric Eye-Bar. This projected window provides a three-sided panoramic view with one of the largest counter spaces offered on a pass-thru window. An offset in the base along with a drip rail on the header provides security from outside intrusion and rain protection.

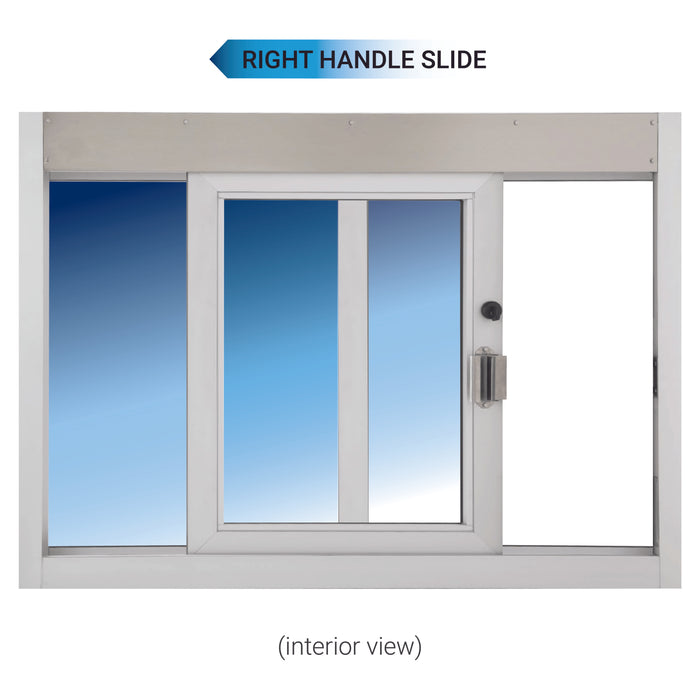

36" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9044/9046

These self-closing transaction windows with horizontal sliders meet all health code requirements. These self-closing units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes automatically. With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are the smoothest windows on the market.

STANDARD FEATURES

Shipped fully-assembled and ready to install
Warranty backed with nationwide service centers
1/4” clear tempered safety glass
Weather resistant & sealed to protect from the elements
Dark bronze or clear anodized aluminum
Corrosion resistant material: anodized aluminum and #304-#3 finish stainless steel
Security locking systems
Maximum security hook-bolt locks
Automatically locks every time the door closes to prevent outside penetration

Tech Specs

Installation screw holes: 1/4"

Details

PW-54E

Window unit size: 53-1/2" (W) x 40" (H)
Service opening: 18-1/4”W x 31-1/2”(H)
Rough Opening: 54" (W) x 40-1/2" (H)

SC-3030

Window unit size: 36" (W) x 36" (H)
Service opening: 14-1/2" (W) x 29"(H)
Rough Opening: 36 3/8" (W) x 36 3/8" (H)

Glazing Specifications

1/4" Tempered Glass

Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84

1/4 Tempered Glass Specification
